Terminal pin removal tool set
Terminal pin removal tool set
FR-150
Support various connectors for automobiles
(waterproof & non-waterproof type)
Serve as an all-round player in terminal removal tools
A special terminal removal tool for professionals which has enabled the removal of terminals (B-type & F-type) inserted in the connectors used for various kinds of wiring connections such as automobiles, motorcycles, construction equipment, farm machines, and industrial machine with only one tool.
Terminal pin removal tool set [FR-150]
FR-150 exhibits tremendous power especially for the terminals which have become thinner recently. FR-150 enables smooth and secure removal of terminals with a strong material of its tool shaft that is also employed in airplanes, as well as its unique tip end shape that was invented based on our years of experience we have cultivated as a repair parts manufacturer.
Remarkable point 1
Proof of safety & confidence: "MADE IN JAPAN". This product has been sold for 25 years both in Japan and overseas as a terminal removal tool primarily used for transportation equipment such as automobiles.
Remarkable point 2
Adopted carbon tool steel for the axial material. Operability has been improved based on a review of hardness and elastic modulus trying to achieve that applied power for accessing a trans of connector and terminal is conveyed more efficiently to the tip of tools compared with conventionally adopted nickel-chrome-molybdenum steel. In addition, abrasion resistance has been improved too in order to secure longer product lifetime.
Carbon tool steel refers to
an alloy steel mainly containing carbon (0.55%), manganese (0.10%) and silicon (0.10%) in the iron. It is frequently adopted for tools, blades (drill, grinder and knife) and press dies which require to secure both strength and toughness
| Steel type | Chemical composition (%) | |||||||
|---|---|---|---|---|---|---|---|---|
| carbon | Mangan | silicon | phosphorus | sulfur | nickel | chromium | molybdenum | |
| nickel-chromium- molybdenum steel |
0.12~0.50 | 0.30~1.20 | 0.15~0.35 | less than 0.030 | less than 0.030 | 0.40~4.50 | 0.40~3.50 | 0.15~0.70 |
| Carbon tool steel | 0.55~1.50 | 0.10~0.50 | 0.10~0.35 | less than 0.030 | less than 0.030 | - | - | - |
Remarkable point 3

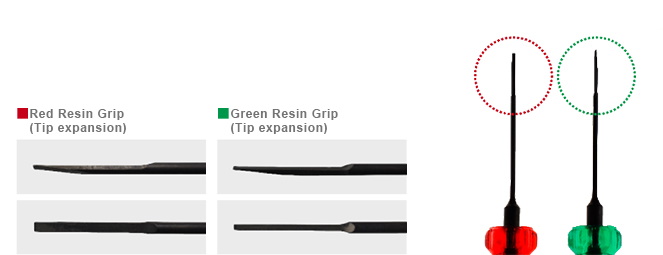

We have designed and developed the product to achieve smooth and secure works when removing the terminals inserted in waterproof & non-waterproof connectors. We paid attention to details such as the tip end shape of its shaft.
Specification
Example of products supporting terminal removal tool
 |  |  |  |  |  |
| 250 Brass female terminal | 110 Brass male terminal | Waterproof male terminal 060 (FRM) -series | Waterproof male terminal 070 (FRA) -series | Waterproof male terminal 070 (FRY) -series | Waterproof male terminal 090 (FRS) -series |
| B-9 | B-6 | FRM-101N | FRA-104N | FRY-101N | FRS-102N |
Instruction for use
